Name: CWUP-20 Circulating UV Laser Chiller Circulating Water Chiller ±0.1℃ Stability RS485 Communication
Brand: Guangzhou Hopoke CNC Equipment Co., Ltd.
SKU: CWUP-20
Availability: InStock

Detail Information

Model:

CWUP-20

Machine Size:

58 X29X52cm (L X W X H)

Warranty:

2 Years

Standard:

CE, REACH And RoHS

Highlight:

CWUP-20 UV Laser Chiller

RoHS UV Laser Chiller

50Hz Circulating Water Chiller

Product Description

Circulating Water Chiller CWUP-20 for Ultrafast Laser UV Laser ±0.1℃ Stability RS485 Communication

Product Description:

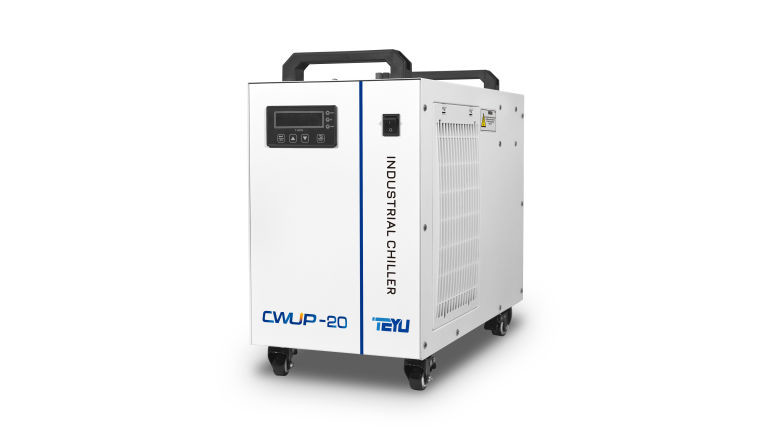

TEYU circulating water chiller CWUP-20 is an active cooling portable water chiller that optimizes the operation of your ultrafast laser and UV laser system. The water temperature of this small laser chiller is PID controlled, delivering a particularly high degree of temperature stability of ±0.1°C and a cooling capacity of up to 1430W.

Portable industrial water chiller CWUP-20 supports RS485 communication to realize communication between the chiller and the laser system. Designed with multiple built-in alarm functions and an intelligent digital temperature controller. Easy-fill port is mounted on top while 4 caster wheels are easy for mobility.

Features:

Intelligent functions

* Low tank water level detecting

* Low water flow rate detecting

* Over water temperature detecting

* Heating of the coolant water at low ambient temperature

Self-check display

* 12 types of alarm codes

Easy routine maintenance

* Toolless maintenance of dustproof filter screen

* Quick-replaceable optional water filter

Communication function

* Equipped with RS485 Modbus RTU protocol

Technical Parameters:

Model	CWUP-20AI	CWUP-20BI
Voltage	AC 1P 220-240V	AC 1P 220~240V
Frequency	50Hz	60Hz
Current	0.8~5.6A	0.6~7.7A
Max. power consumption	1.28kW	1.37kW
Compressor power	0.59kW	0.7kW
Compressor power	0.8HP	0.95HP
Nominal cooling capacity	4879Btu/h
	1.43kW
	1229Kcal/h
Refrigerant	R-410a	R-407c
Precision	±0.1℃
Reducer	Capillary
Pump power	0.11kW	0.09kW
Tank capacity	6L
Inlet and outlet	Rp1/2"
Max. pump pressure	2.5bar
Max. pump flow	19L/min	15L/min
N.W	25Kg
G.W	28Kg
Dimension	58X29X52cm (L X W X H)
Package dimension	65X36X56cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Ventilation Distance:

CWUP-20 Circulating UV Laser Chiller Circulating Water Chiller ±0.1℃ Stability RS485 Communication 0
