Name: High Force Pneumatic Weld Head Opposed Pincer Electrodes
Brand: Guangzhou Hopoke CNC Equipment Co., Ltd.
SKU: NA-70C/NA-80C/NA-100C
Availability: InStock

Detail Information

Actuation Type:	Pneumatic	Electrode Configuration:	Opposed
Electrode Alignment:	Offset	Electrode Type:	Customizable
Force Range:	49-785N	Automation Ready:	Yes
Size:	Dimensions Will Vary With Options Ordered	Weight:	Weight Will Vary With Options Ordered
Highlight:	High Force Weld Head , Pneumatic Weld Head , pneumatic head

Product Description

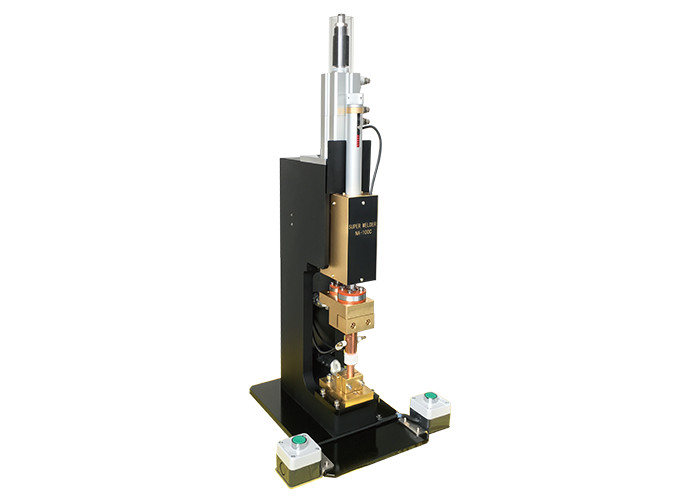

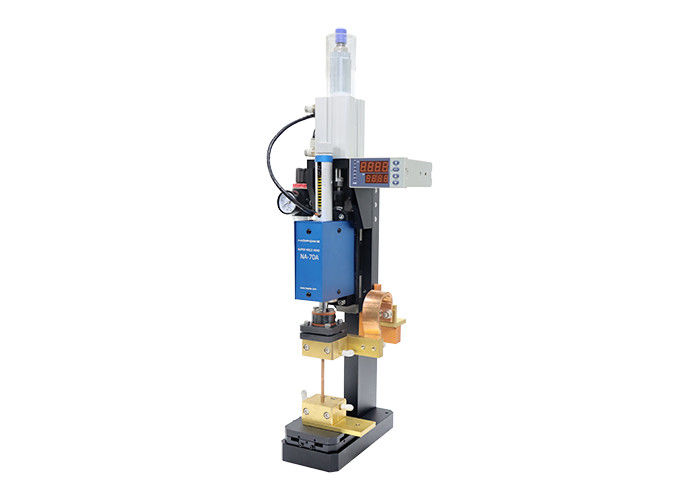

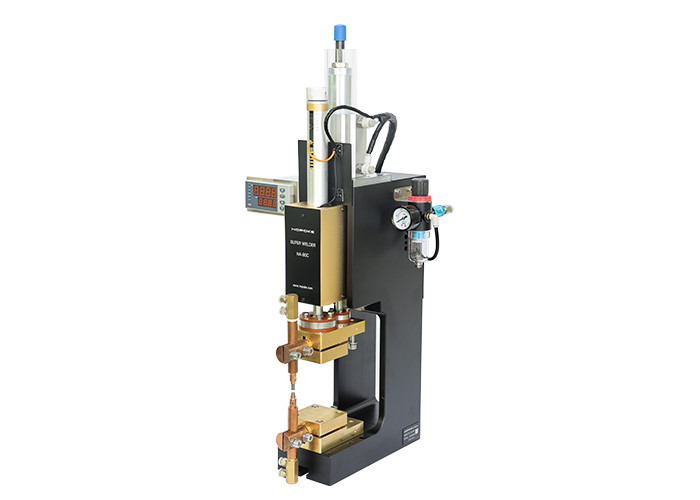

High Force Pneumatic Weld Head – Opposed Pincer Electrodes

Featuring excellent dynamic response and stable follow-up, the air actuated NA-70C/NA-80C/NA-100C pincer welding pliers are well suited to a wide range of resistance welding applications which require both precision and reliability. Depending on the model, adjustable force firing from 49 – 785 N.

Modular for Easy Integration for Automation
Adjustable Force-Firing
Pneumatic actuation

Technical Specifications

Model	NA-70C	NA-80C	NA-100C
Actuation Type	Pneumatic
Force range	49-685N	49-785N	49-785N
Electrode Type	Customizable
Optional Unit	Force, Displacement
Size mm	W220 * D240 * H760	W320 * D190 * H720	W320 * D190 * H750
Weight	≈10kg	≈15kg	≈20kg

Subsequent versions are updated without notice for changes in parameters and specifications.

Related Products

Model	CRW-H4800A	CRW-H8600A	CRW-H100K5
Control frequency	1kHz,2kHz,3kHz,4kHz,5kHz
Control mode	Fixed pulse width/fixed primary peak/fixed secondary current/fixed voltage/fixed power/hybrid control
Number of welding specifications	32 sets of welding schedules
Welding time	0-9999cyc
Setting range	current:0.1-4.0kA voltage: 0.01-10.00V power: 0.1-15.0kW	current:0.2-8.0kA voltage: 0.01-10.00V power: 0.2-25.0kW	current:0.3-15.0kA voltage: 0.01-10.00V power: 0.2-60.0kW
Detection function	Average, Peak, Curve
Waveform display	Current, voltage, power, resistance
Communications interface	RS485
Power supply voltage	3 ~380Ｖ
Size(LWH mm)	502200284		549220320
