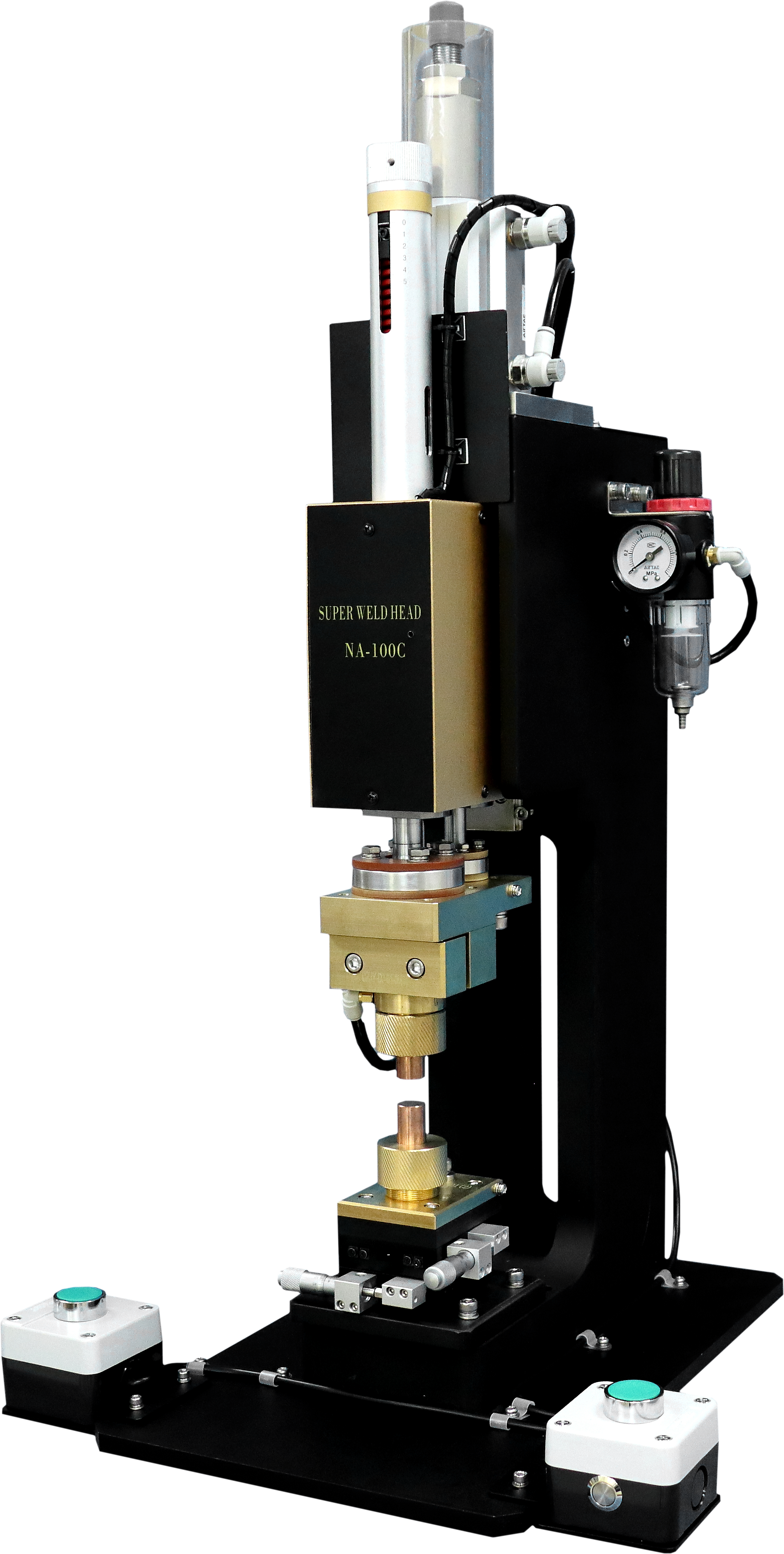

Pneumatic Vertical Welding Head Series NA-100C Incorporating Offset Electrode Alignment

Pneumatic Vertical Welding Head Series NA-100C Incorporating Offset Electrode Alignment
Pneumatic Vertical Welding Head Series NA-100C Incorporating Offset Electrode Alignment
Basic Information
Place of Origin: CHINA
Brand Name: HOPOKE
Model Number: NA-100C
Minimum Order Quantity: Mail Inquiry
Price: Mail Inquiry
Packaging Details: Mail Inquiry
Delivery Time: Mail Inquiry
Payment Terms: T/T
Supply Ability: Mail Inquiry
Get Best Price Contact Now
Detail Information
Actuation Type: Pneumatic Electrode Configuration: Opposed
Electrode Alignment: Offset Electrode Type: Customizable
Force Range: 60-700N Automation Ready: Yes
Size: Dimensions Will Vary With Options Ordered Weight: Weight Will Vary With Options Ordered
Highlight:

NA-100C Pneumatic Welding Head

,

Pneumatic Vertical Welding Head

Product Description

High-Precision High-Reliability Pneumatic Vertical Welding Head Series

  • Technical Specifications

Product Drawing Pneumatic Vertical Welding Head Series NA-100C Incorporating Offset Electrode Alignment 0

Model

 NA-100C

Drive method

Pneumatic,Servo(Customer matching)

Force range

 60 ~ 700N

Electrode Type

customized

Optional Unit

Optional pressure sensors, display instruments, and displacement sensors

Size  L*W*H mm

 L394*W400*H767 mm

Weight

 ≈20kg

Desktop-type welding head with excellent dynamic response speed and stable tracking performance, ideally suited for high-precision and high-reliability resistance welding applications.

It is widely used in demanding scenarios such as: Automotive wire harnesses,Automotive electronic components,Busbar welding for power battery packs,Terminal-to-wire welding in power tools,TO-can welding in optical communication modules.

  • Application

Pneumatic Vertical Welding Head Series NA-100C Incorporating Offset Electrode Alignment 1 Pneumatic Vertical Welding Head Series NA-100C Incorporating Offset Electrode Alignment 2 Pneumatic Vertical Welding Head Series NA-100C Incorporating Offset Electrode Alignment 3 Pneumatic Vertical Welding Head Series NA-100C Incorporating Offset Electrode Alignment 4
