Name: Mid Force Weld Head 49N - 785N Opposed Pincer Electrodes Laser Welding Head
Brand: Guangzhou Hopoke CNC Equipment Co., Ltd.
SKU: NA-28C/NA-70C
Availability: InStock

Detail Information

Actuation Type:	Pneumatic / Motorized	Electrode Configuration:	Opposed
Electrode Alignment:	Offset	Electrode Type:	Customizable
Force Range:	49-785N	Automation Ready:	Yes
Size:	Dimensions Will Vary With Options Ordered	Weight:	Weight Will Vary With Options Ordered
Highlight:	Mid Force Weld Head , Weld Head 49N , 785N laser welding head

Product Description

Mid Force Weld Head – Opposed Pincer Electrodes

Good following performance, all adopt imported bearings and guide rails.
No horizontal displacement during pressurization, no bias and no sliding, good stability.
Pressure precision control and adjustable, adapt to different welding process requirements.
Built-in photoelectric switch is connected with welding controller to ensure that each welding process is carried out under the same pressure.
Cylinder or motor can be used to pressurize.
Electrode fixture can be reasonably designed for welding workpiece, easy to operate and maintain.

Technical Specifications

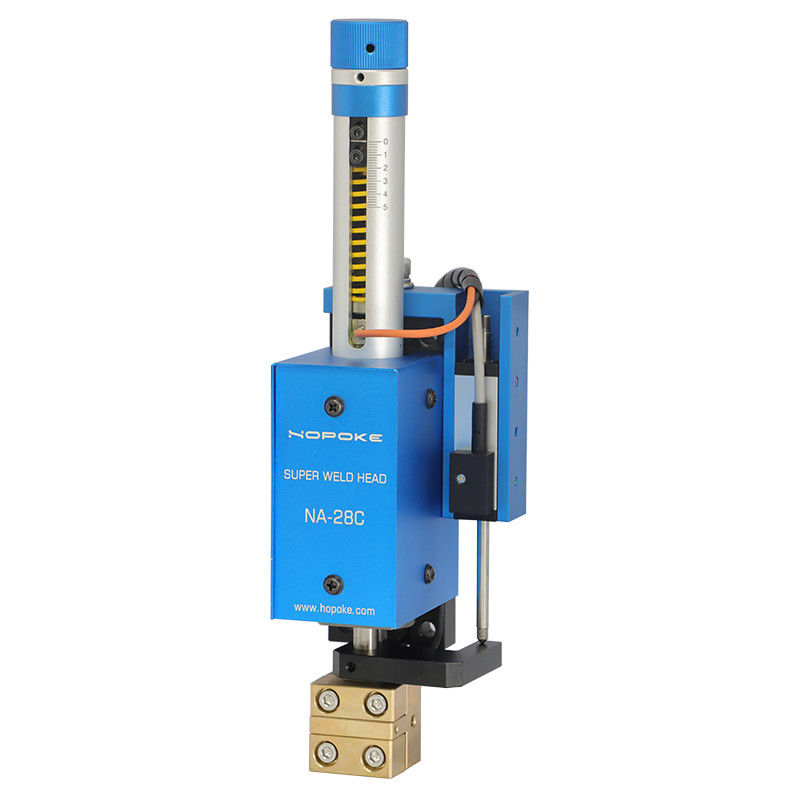

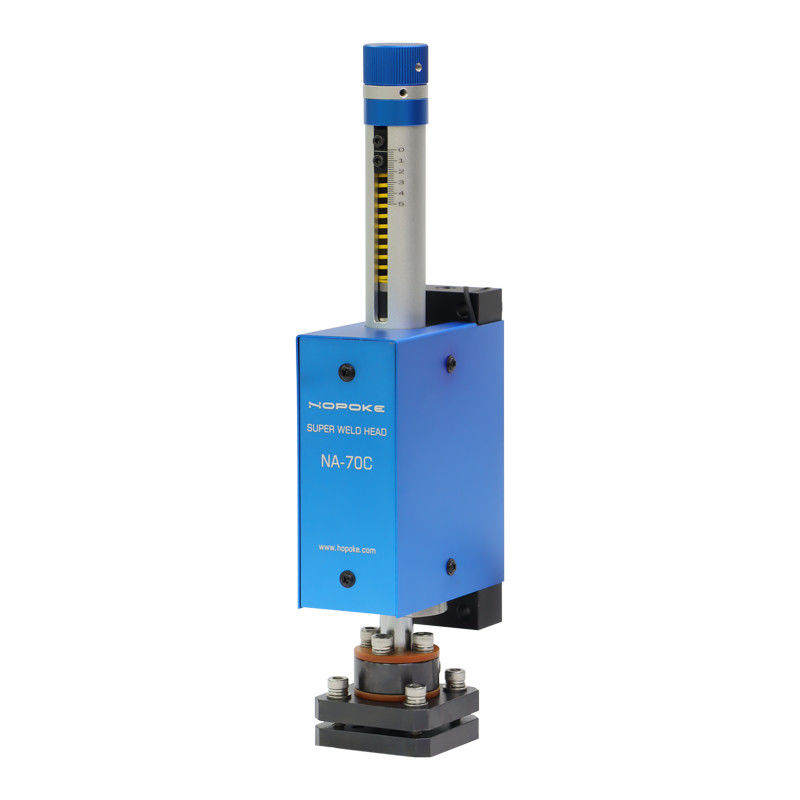

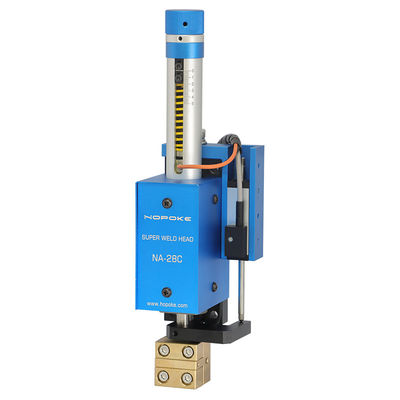

Model	NA-28C	NA-70C
Actuation Type	Pneumatic / Motorized
Force range	25-295N	49-685N
Size mm	W52 * D78 * H295	W52 * D107 * H327
Weight kg	≈3	≈3.5

Related Products

Model	CRW-H4800A	CRW-H8600A	CRW-H100K5
Control frequency	1kHz,2kHz,3kHz,4kHz,5kHz
Control mode	Fixed pulse width/fixed primary peak/fixed secondary current/fixed voltage/fixed power/hybrid control
Number of welding specifications	32 sets of welding schedules
Welding time	0-9999cyc
Setting range	current:0.1-4.0kA voltage: 0.01-10.00V power: 0.1-15.0kW	current:0.2-8.0kA voltage: 0.01-10.00V power: 0.2-25.0kW	current:0.3-15.0kA voltage: 0.01-10.00V power: 0.2-60.0kW
Detection function	Average, Peak, Curve
Waveform display	Current, voltage, power, resistance
Communications interface	RS485
Power supply voltage	3 ~380Ｖ
Size(LWH mm)	502200284		549220320

Tag:

Place of Origin:	CHINA
Brand Name:	HOPOKE
Model Number:	NA-28C/NA-70C

Minimum Order Quantity:	Mail Inquiry
Price:	Mail Inquiry
Packaging Details:	Mail Inquiry
Delivery Time:	Mail Inquiry
Payment Terms:	T/T
Supply Ability:	Mail Inquiry
