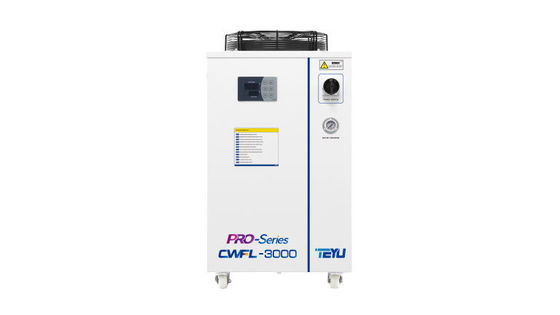

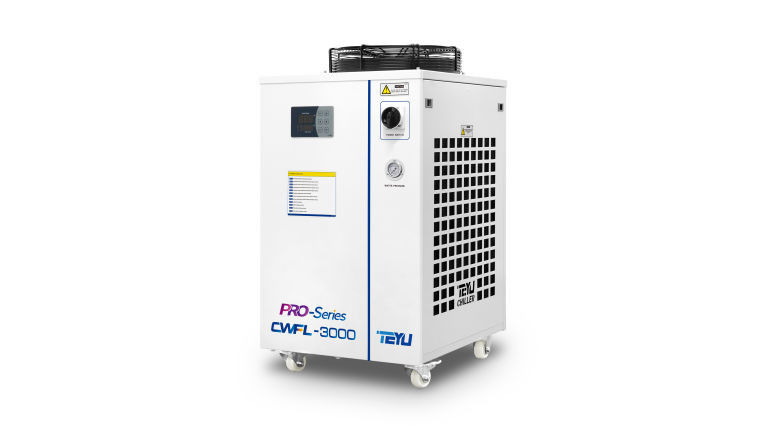

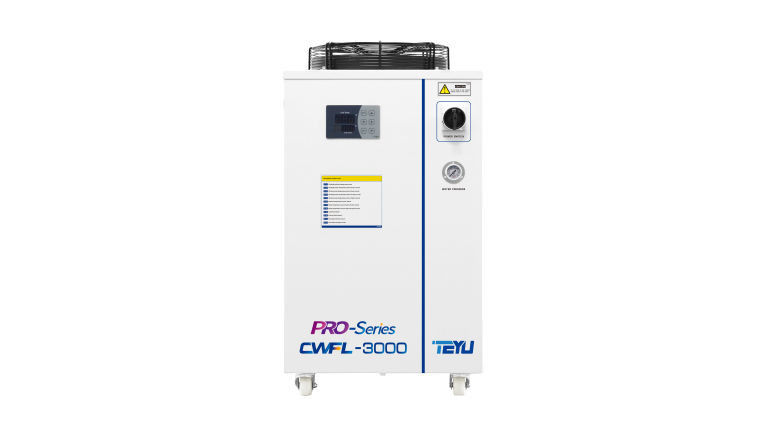

Recirculating Water Chiller CWFL-3000 for 3kW Fiber Laser Processing Machine
Product Description:
TEYU recirculating water chiller CWFL-3000 is made specifically for 3kW fiber laser processing machines. Thanks to the dual temperature control circuit inside the chiller, CWFL-3000 water chiller is able to regulate and maintain the temperature of two parts - the laser and the optics. Both the refrigeration circuit and the water temperature are controlled by the intelligent digital control panel.
Industrial water chiller CWFL-3000 is equipped with high performance water pump, which guarantees that water circulation between the chiller and the above-mentioned two heat-producing parts can be ongoing. Being Modbus-485 capable, this fiber laser chiller can realize the communication with the laser system.
Features:
* Dual cooling circuit
* Active cooling
* Temperature stability: ±0.5°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-410a
* Intelligent digital control panel
* Integrated alarm functions

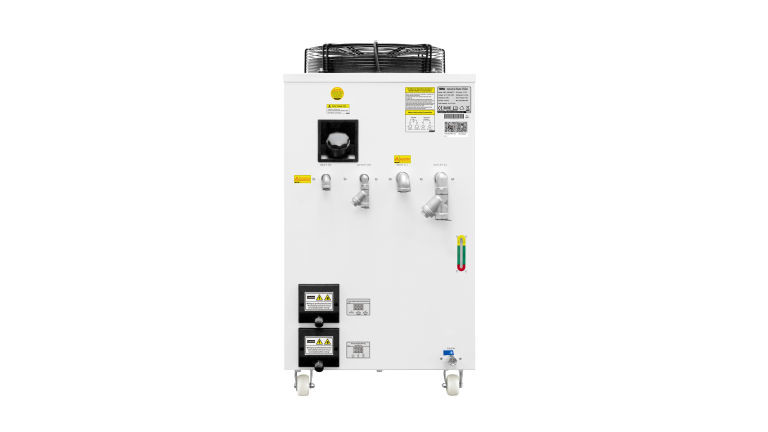

* Back mounted fill port and easy-to-read water level check
* RS-485 Modbus communication function
* High reliability, energy efficiency and durability
* Available in 380V or 220V
* SGS certified version is available
Technical Parameters:
| Model |
CWFL-3000ANP |
CWFL-3000BNP |
CWFL-3000ENP |
| Voltage |
AC 1P 220-240V |
AC 1P 220-240V |
AC 3P 380V |
| Frequency |
50Hz |
60Hz |
50Hz |
| Current |
5~33.3A |
3.6~30.9A |
2.1~14A |
| Max. power consumption |
5.76kW |
6.05kW |
6.08kW |
| Heater power |
600W+1400W |
| Precision |
±0.5℃ |
| Reducer |
Capillary |
| Pump power |
0.75kW |
1kW |
0.75kW |
| Tank capacity |
22L |
| Inlet and outlet |
Rp1/2”+Rp1” |
| Max. pump pressure |
5bar |
5.9bar |
5bar |
| Rated flow |
2L/min+＞30L/min |
| N.W. |
93Kg |
87Kg |
105Kg |
| G.W. |
109Kg |
103Kg |
121Kg |
| Dimension |
77X55X103cm (L X W X H) |
| Package dimension |
78X65X117cm (L X W X H) |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
Ventilation Distance:
