Model: | CWFL-2000 | Machine Size: | 70 X 47 X 89cm (L X W X H) |
---|---|---|---|
Warranty: | 2 Years | Standard: | CE, REACH And RoHS |
Highlight: | CWFL-2000 Air Cooled Water Chiller,Air Cooled Water Chiller 2kW,60Hz industrial water chiller system |

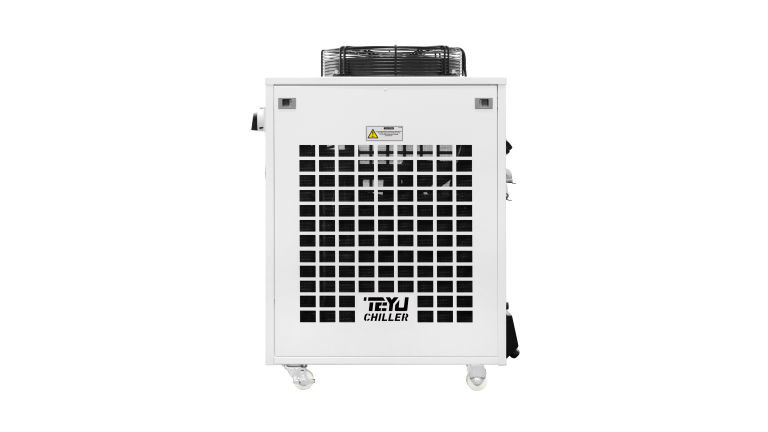

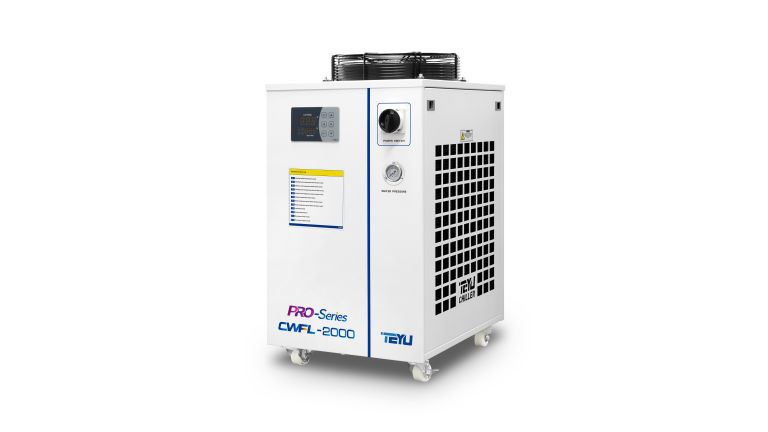

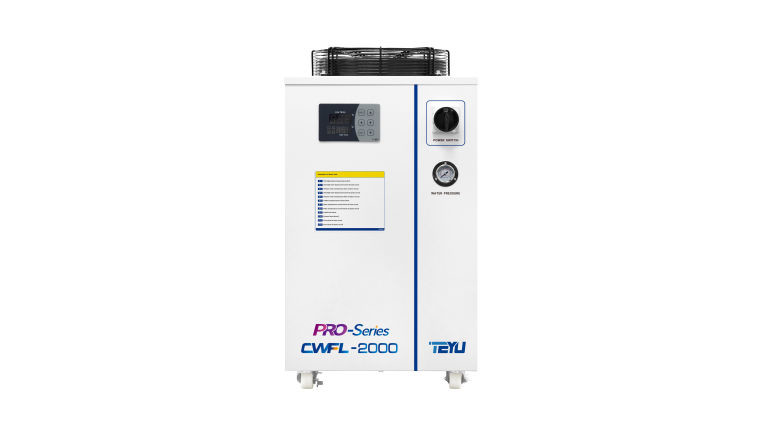

TEYU air-cooled water chiller CWFL-2000 is made specifically by TEYU industrial chiller manufacturer to control the temperature of fiber laser metal cutter welder up to 2kW. CWFL-2000 chiller features two channels in one housing, targeting two areas in the fiber laser system - the fiber laser and the optics. This dual channel design reduces the water chiller footprint to a great extent comparing with the two-single-chiller arrangement.
CWFL-2000 industrial fiber laser cooling system is designed to operate under indoor conditions and can be easily serviced by taking away the side housings. It comes equipped with an easy-to-read water level check and easy-fill port, making water adding quite convenient. Multiple alarm devices provide further protection, making the operation of industrial chiller and laser equipment more stable and reliable.
* Dual cooling circuit
* Active cooling
* Temperature stability: ±0.5°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-410a
* User-friendly controller interface
* Integrated alarm functions

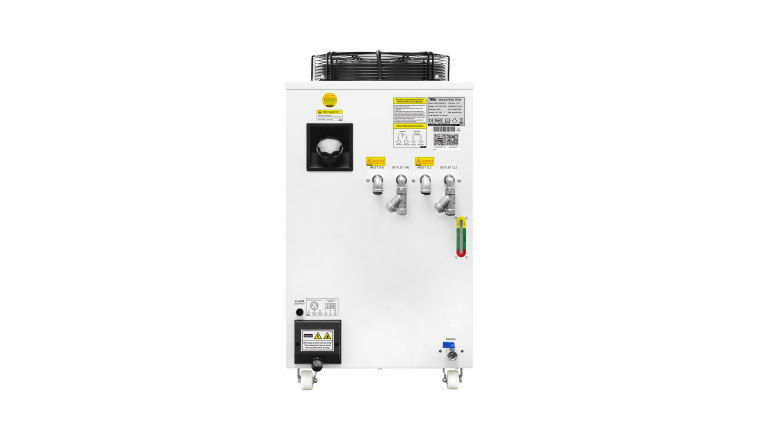

* Back mounted fill port and visual water level
* Optimized for high performance at low temperatures
* Ready for immediate use
Model | CWFL-2000ANP | CWFL-2000BNP |
Voltage | AC 1P 220-240V | AC 1P 220-240V |
Frequency | 50Hz | 60Hz |
Current | 3.4~21.5A | 3.9~21.1A |
Max. power consumption | 3.63kW | 3.78kW |
Heater power | 600W+600W | |
Precision | ±0.5℃ | |
Reducer | Capillary | |
Pump power | 0.55kW | 0.75kW |
Tank capacity | 14L | |
Inlet and outlet | Rp1/2"+Rp1/2" | |
Max. pump pressure | 4.4bar | 5.3bar |
Rated flow | 2L/min+>20L/min | |
N.W. | 75Kg | 70Kg |
G.W. | 87Kg | 82Kg |
Dimension | 70 X 47 X 89cm (L X W X H) | |
Package dimension | 73 X 56 X 105cm (LX W X H) |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
