1500W Fiber Laser Chiller Water Cooled Chiller For Metal Laser Welding Machine

Basic Information
Place of Origin: China
Brand Name: TEYU
Certification: CE, REACH and RoHS
Model Number: CWFL-1500
Minimum Order Quantity: Mail Inquiry
Price: Mail Inquiry
Packaging Details: Mail Inquiry
Delivery Time: Mail Inquiry
Supply Ability: Mail Inquiry
Detail Information
Model: CWFL-1500 Machine Size: 70 X 47 X 89cm (L X W X H)
Warranty: 2 Years Standard: CE, REACH And RoHS
Highlight:

1500W Fiber Laser Chiller

,

1.5KW Fiber Laser Chiller

,

water cooled chiller RoHS


Product Description

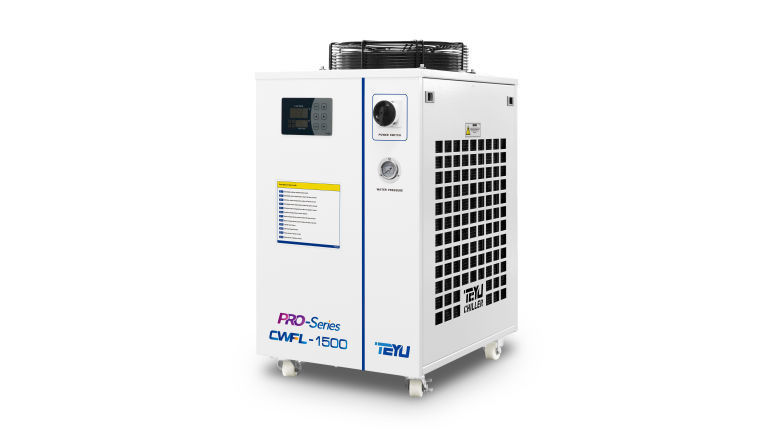

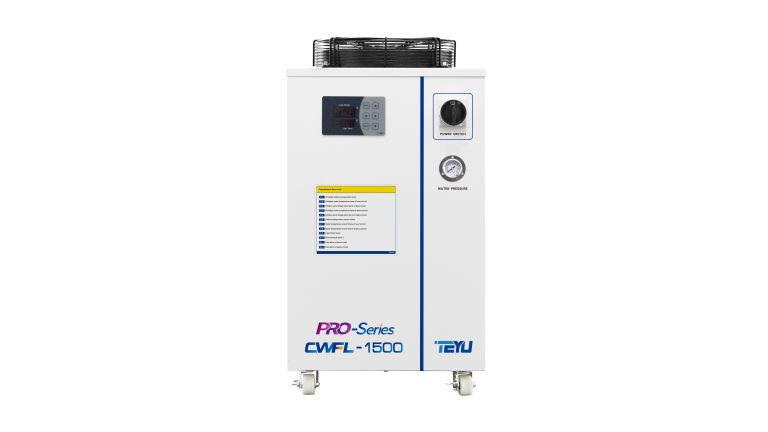

Industrial Chiller CWFL-1500 for 1500W Metal Laser Welding Cutting Engraving Machine

Product Description:

Industrial chiller CWFL-1500 is made specifically by TEYU Chiller Manufacturer for cooling 1500W metal laser welding/cutting/engraving machines. It features dual circuit design, and each of the cooling circuits is independently controlled - one cools the fiber laser and the other cools the optics. Providing active cooling featuring ±0.5℃ stability to keep your fiber laser equipment at very precise temperature control 24/7.

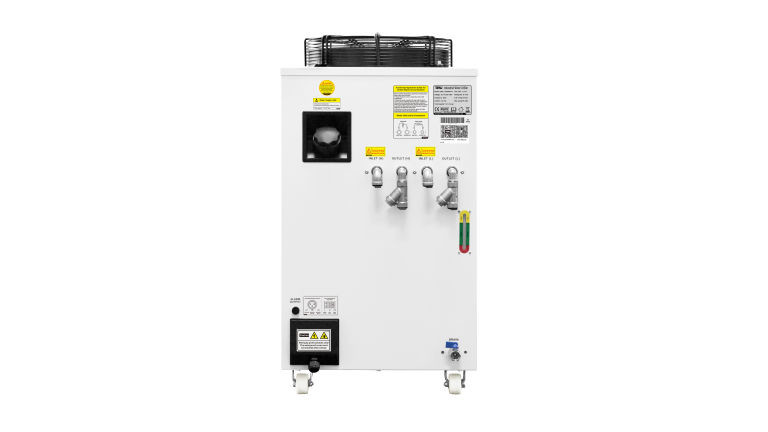

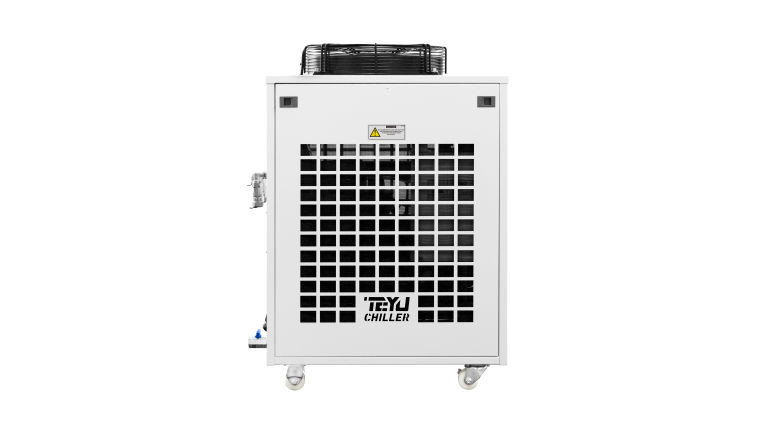

Metal machining water chiller CWFL-1500 comes with air cooled finned condenser, fixed-speed compressor and highly reliable evaporator to ensure optimal cooling performance. The disassembly of the side dust-proof filter for the periodic cleaning operations is easy with fastening system interlocking. Intelligent digital control panel to easily check the temperature and built-in fault code at any time. Four caster wheels offer easy mobility and unmatched flexibility.



Features:

* Dual cooling circuit

* Active cooling

* Temperature stability: ±0.5°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410a

* User-friendly controller interface

* Integrated alarm functions

* Back mounted fill port and visual water level

* Optimized for high performance at low temperatures

* Ready for immediate use



Technical Parameters:


Model CWFL-1500ANP CWFL-1500BNP
Voltage AC 1P 220-240V AC 1P 220-240V
Frequency 50Hz 60Hz
Current 2.5~18.8A 3.9~17.5A
Max. power consumption 3.28kW 4.09kW
Heater power 400W+600W
Precision ±0.5℃
Reducer Capillary
Pump power 0.37kW 0.75kW
Tank capacity 14L
Inlet and outlet Rp1/2"+Rp1/2"
Max. pump pressure 3.6bar 5.3bar
Rated flow 2L/min + >15L/min
N.W. 70Kg
G.W. 82Kg
Dimension 70 X 47 X 89cm (L X W X H)
Package dimension 73 X 56 X 105cm (LX W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.





Ventilation Distance:
