4U Rack Mount Water Chiller RMUP-300 Ultrafast Industrial Chiller Machine

Basic Information
Place of Origin: China
Brand Name: TEYU
Certification: CE, REACH and RoHS
Model Number: RMUP-300
Minimum Order Quantity: Mail Inquiry
Price: Mail Inquiry
Packaging Details: Mail Inquiry
Delivery Time: Mail Inquiry
Supply Ability: Mail Inquiry
Detail Information
Model: RMUP-300 Machine Size: 49 X 48 X 18cm (L X W X H) 4U
Warranty: 2 Years Standard: CE, REACH And RoHS
Highlight:

4U Rack Mount Water Chiller

,

Rack Mount Water Chiller RMUP-300

,

Ultrafast industrial chiller machine


Product Description

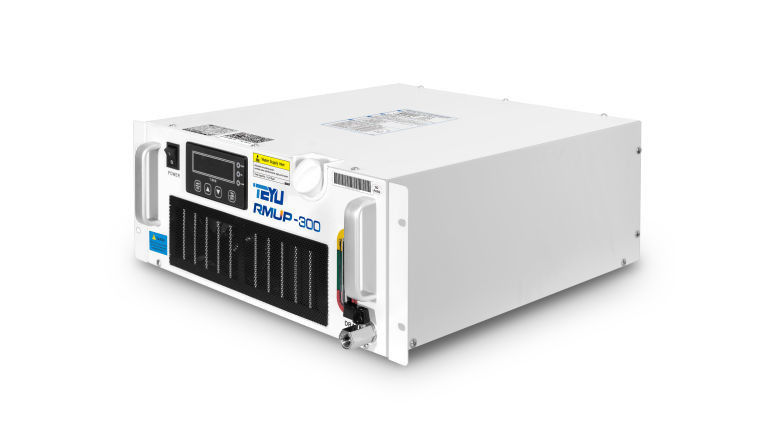

4U Rack Mount Water Chiller RMUP-300 for UV Laser Ultrafast Laser

Product Description:

TEYU rack mount water chiller RMUP-300 is only 4U tall and ideally suited for 3W-5W UV laser and ultrafast laser. It delivers extremely precise cooling of ±0.1°C stability with PID control technology and a cooling capacity of up to 380W. Being extremely temperature stable, RMUP-300 water chiller can satisfy your demanding laser processes.

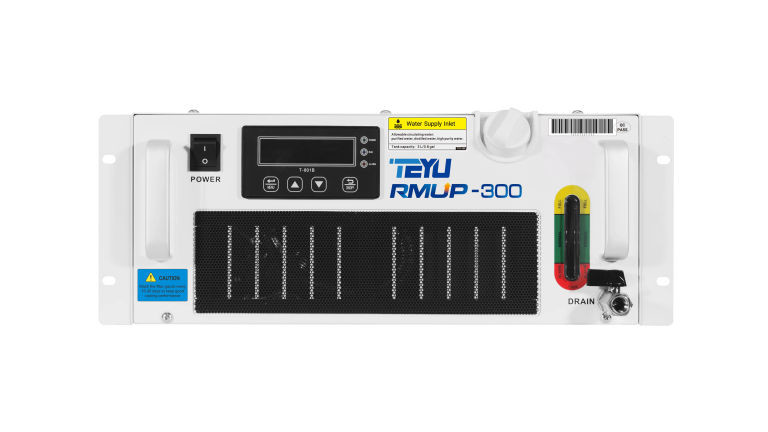

Rack mount water chiller RMUP-300 incorporates standard features like highly durable water pump, high performance cooling fan and integrated front handles which allow for easy mobility. The water fill port and drain port are mounted in the front, which is very convenient to use. The refrigerant used complies with environmental standards. Small, lightweight, ultra-precise, space-saving, mini dimension for superior performance, RMUP-300 water chiller can realize all your imagination of a small laser cooling unit.



Features:

Intelligent functions

* Low tank water level detecting

* Low water flow rate detecting

* Over water temperature detecting

* Heating of the coolant water at low ambient temperature



Self-check display

* 12 types of alarm codes



Easy routine maintenance

* Toolless maintenance of dustproof filter screen

* Quick-replaceable optional water filter



Communication function

* Equipped with RS485 Modbus RTU protocol

Technical Parameters:

Medel RMUP-300AH RMUP-300BH
Voltage AC 1P 220-240V AC 1P 220-240V
Frequency 50Hz 60Hz
Current 0.5~5A 0.5~4.8A
Max. power consumption 0.84kW 0.9kW



Compressor power

0.21kW 0.27kW
0.29HP 0.36HP





Nominal cooling capacity

1296Btu/h
0.38kW
326Kcal/h
Refrigerant R-134a
Precision ±0.1℃
Reducer Capillary
Pump power 0.05kW
Tank capacity 3L
Inlet and outlet Rp1/2"
Max. pump pressure 1.2bar
Max. pump flow 13L/min
N.W 19Kg
G.W 21Kg
Dimension 49 X 48 X 18cm (L X W X H) 4U
Package dimension 59 X 53 X 26cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
