Product Description:

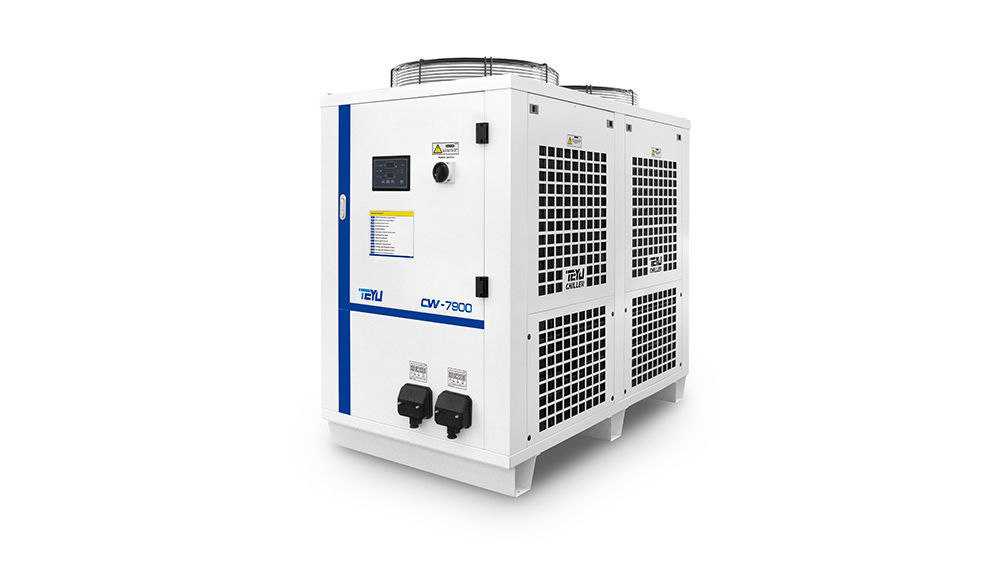

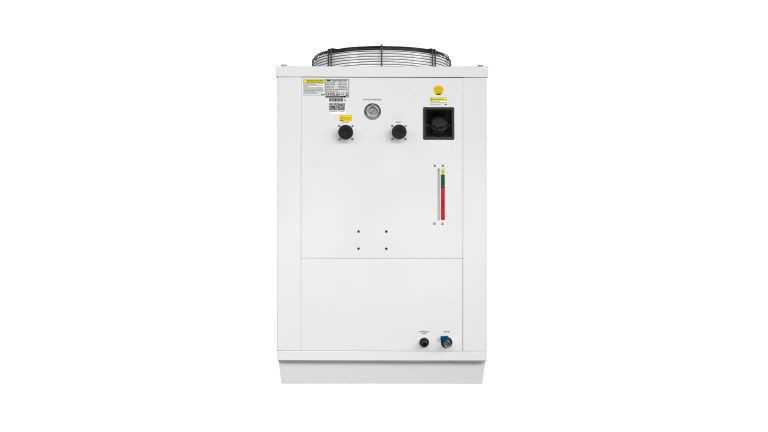

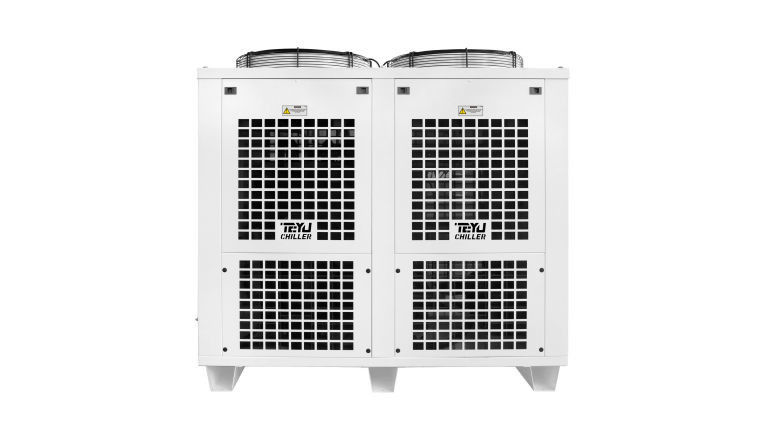

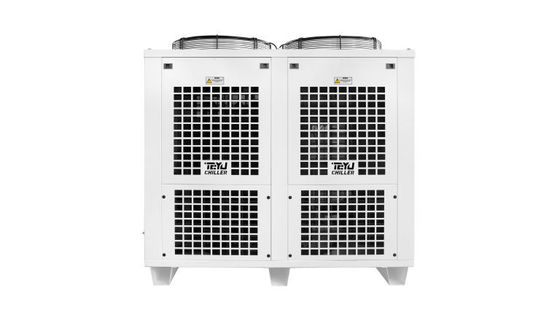

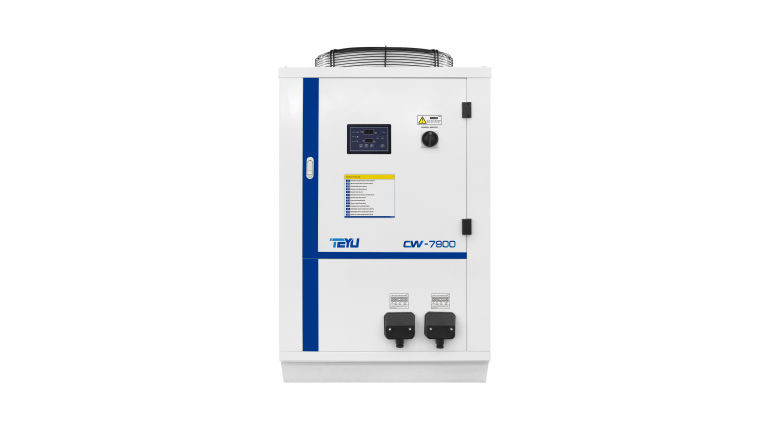

TEYU industrial process chiller CW-7900 ensures precise temperature control in analytical, industrial, medical and laboratory applications. It cools in a temperature range of 5°C to 35 °C and achieves a stability of ±1°C while the cooling capacity is up to 33kW. With a robust design, air cooled fluid cooler CW-7900 ensures continuous and reliable operation. The digital control panel is easy to read and provides multiple alarms and safety functions.
Industrial water chiller CW-7900 is equipped with high performance compressor and efficient evaporator to achieve high energy efficiency, so the operating cost can be significantly reduced. Thanks to the support of Modbus485 communication, water chiller CW-7900 is available for remote operation - monitoring the working status and modifying the parameters of the chiller. 50Hz/60Hz and 380V/415V/460V is available.
Features:
* Cooling Capacity: 33kW
* Active cooling
* Temperature stability: ±1°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-410a
* Intelligent temperature controller
* Multiple alarm functions
* High reliability, energy efficiency and durability
* Easy maintenance and mobility
* Available in 380V, 415V or 460V
Technical Parameters:
| Model |
CW-7900EN |
CW-7900FN |
| Voltage |
AC 3P 380V |
AC 3P 380V |
| Frequency |
50Hz |
60Hz |
| Current |
2.1~34.1A |
2.1~28.7A |
| Max. power consumption |
16.42kW |
15.94kW |
Compressor power |
10.62kW |
10.24kW |
| 14.24HP |
13.73HP |
Nominal cooling capacity |
112596Btu/h |
| 33kW |
| 28373Kcal/h |
| Refrigerant |
R-410a |
| Precision |
±1℃ |
| Reducer |
Capillary |
| Pump power |
1.1kW |
1kW |
| Tank capacity |
170L |
| Inlet and outlet |
Rp1" |
| Max. pump pressure |
6.15bar |
5.9bar |
| Max. pump flow |
117L/min |
130L/min |
| N.W. |
291Kg |
277Kg |
| G.W. |
331Kg |
317Kg |
| Dimension |
155x80x135cm (L x W x H) |
| Package dimension |
170X93X152cm (L x W x H) |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
|
|
Applications:
* Laboratory equipment (rotary evaporator, vacuum system)
* Analytical equipment (spectrometer, bio analyzes, water sampler)
* Medical diagnostic equipment(MRI, X-ray)
* Plastic molding machines
* Printing machine
* Furnace
* Welding machine
* Packaging machinery
* Plasma etching machine
* UV curing machine
* Gas generators
